Earth Bar
view catalog
- Earth bars are non-plated or tin-plated products made of 99.9% copper, and can be divided into various types: single file, double file, 3P to 30P. They are manufactured to support the safe grounding of electric facilities.
- Materials: copper 99.9% / Tin-plated
- Volts Size : M5(Single-file) / M4,M5(Double-file)
- Certificates :
Earth bars are non-plated or tin-plated products made of 99.9% copper, and can be divided into various types: single file, double file, 3P to 30P. They are manufactured to support the safe grounding of electric facilities.

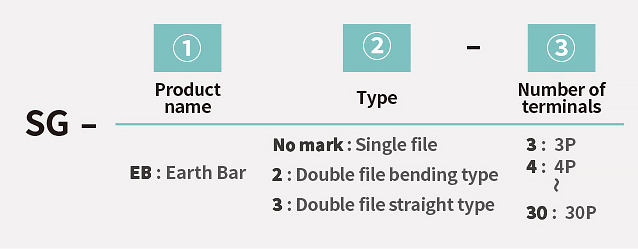

Ordering Information
Product specifications
SG-EB
| Model | Size(mm) | Weight(g) | |||
| A | B | Width | Thickness (T) | ||
| SG-EB-3P | 92 | 75 | 15 | 3 | 435 |
| SG-EB-4P | 107 | 90 | 505 | ||
| SG-EB-5P | 122 | 105 | 595 | ||
| SG-EB-6P | 137 | 120 | 675 | ||
| SG-EB-7P | 152 | 135 | 760 | ||
| SG-EB-8P | 167 | 150 | 830 | ||
| SG-EB-10P | 197 | 180 | 970 | ||
| SG-EB-12P | 227 | 210 | 1120 | ||
| SG-EB-15P | 272 | 255 | 1360 | ||
| SG-EB-20P | 347 | 330 | 1760 | ||
SG-EB2
| Model | Size(mm) | Weight(g) | |||
| A | B | Width | Thickness(T) | ||
| SG-EB2-6P | 99 | 82 | 25 | 3 | 810 |
| SG-EB2-8P | 114 | 97 | 930 | ||
| SG-EB2-10P | 129 | 112 | 1070 | ||
| SG-EB2-12P | 144 | 127 | 1190 | ||
| SG-EB2-16P | 174 | 157 | 1440 | ||
| SG-EB2-20P | 204 | 187 | 1720 | ||
| SG-EB2-24P | 234 | 217 | 1950 | ||
| SG-EB2-30P | 279 | 262 | 2350 | ||
SG-EB3
| Model | Size(mm) | Weight(g) | |||
| A | B | Width | Thickness(T) | ||
| SG-EB3-6P | 99 | 82 | 25 | 3 | 720 |
| SG-EB3-8P | 114 | 97 | 860 | ||
| SG-EB3-10P | 129 | 112 | 990 | ||
| SG-EB3-12P | 144 | 127 | 1090 | ||
| SG-EB3-16P | 174 | 157 | 1380 | ||
| SG-EB3-20P | 204 | 187 | 1630 | ||
| SG-EB3-24P | 234 | 217 | 1890 | ||
| SG-EB3-30P | 279 | 262 | 2290 | ||
